掌上型光譜分析儀 / 鼎昕科技(股)公司

NA

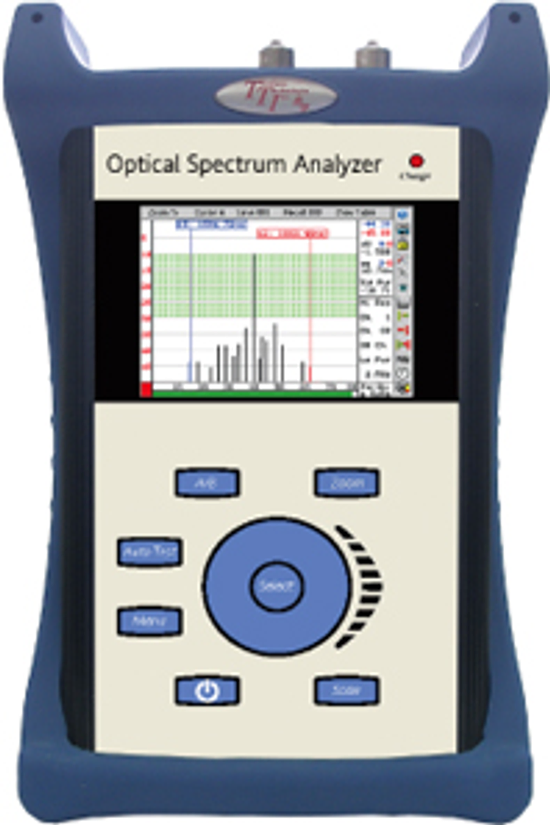

The mini OSA is available in up to 88 channels on the ITU Grid, It is designed for simple operation and is suited for field or lab use The unit allows users to set Pass/Fail thresholds that are displayed on the main graphical display S Band 1492-1528nm (200.9 THz - 196.2 THz), C Band 1530-1561nm (196.0 THz - 192.0THz) L Band 1572-1608nm (190.5 THz - 186.3 THz)CWDM 1271-1611nm

NA
Wavelength Accuracy: ±0.1nm Channel Power Range: +10dBm to -50dBm Channel Spacing: 50GHz, 100GHz or 20nm (CWDM) Absolute Accuracy: ±1 dB Optical Rejection Ratio: 40dBc (@50GHz) Universal UPC (FC/SC)

Fiber Optic Product
