近場掃描顯微系統 / 鼎昕科技(股)公司

Features
NSOM and AFM modes of operation, Near-field optical and luminescence images in photon counting mode, Transmission and Reflection NSOM configuration, Femtosecond and UV excitation, True single molecule detection

XY sample scanner
20 mm diameter central opening, scan size: 40 ìm x 40 ìm, scan step: 0.01nm, image size: 1024 x 1024 pixels, XY sample travel: 10 mm x 10 mm (computer controlled)

Optical resolution
50 nm typical Piezo-inertial Z stage: Maximum Z-travel: 9 mm

lZ-scanning range
±5 ìm

Photon counter
Maximum photon counting rate: 5 x 107 cps, Dark counts: < 10 cps, 185 - 680 nm (185 nm - 850 nm optionally)

Standard illumination sources
150 W QTH lamp, 670 nm (laser diode), 532 nm, 488 nm , 400 nm (femtosecond laser), l633 nm.

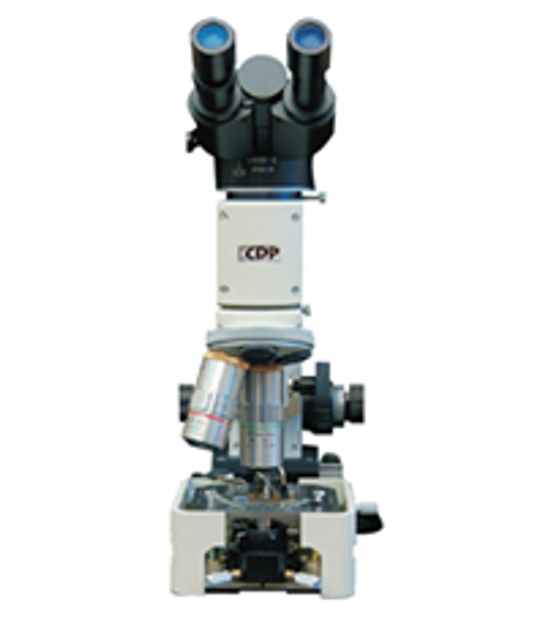

NSOM MoScan-F
